| Door Preperation |
Cross bore 2-1/8", Edge bore 1". |
| Backset: |

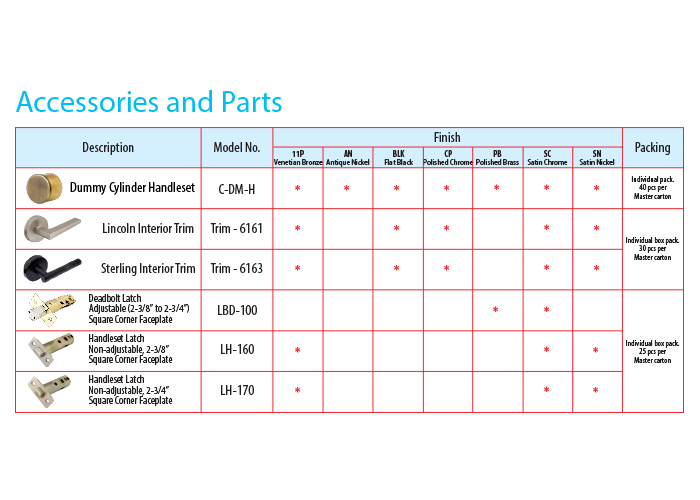

Includes one 4-way adjustable latch (2-3/8" to 2-3/4") and two non-adjustable handleset latch with removable square corner faceplate (2-3/8" and 2-3/4"). |
| Door Thickness: |
1-3/8" to 2". |
| Cylinder: |
Solid brass cylinder.
6-pin system and 5-pin ready |

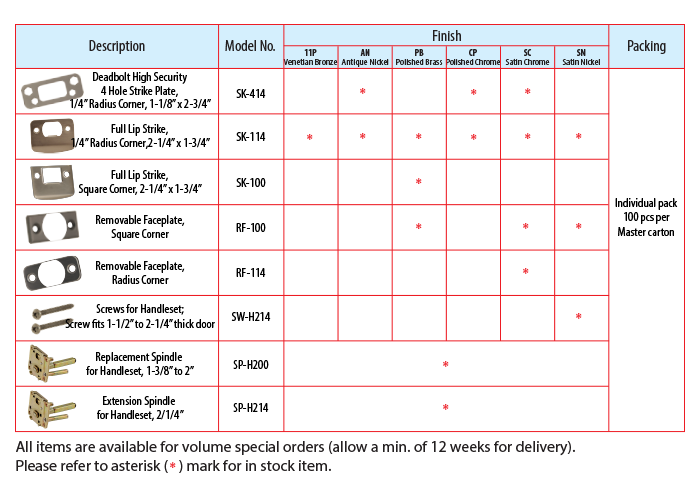

| Deadbolt Latch Strike Plate: |
Standard 1-1/8" x 2-3/4" radius corner. |
| Deadlatch Strike Plate: |
Standard 1-3/4" x 2-1/4" full lip round corner. |
