| Door Preperation |
Cross bore 2-1/8", Edge bore 1". |
| Backset: |
Adjustable square corner faceplate deadbolt latch. |
| Door Thickness: |
1-3/8" to 1-3/4". |
| Cylinder: |
1-3/8" to 2". 5-pin sytem Schlage C keyway. |

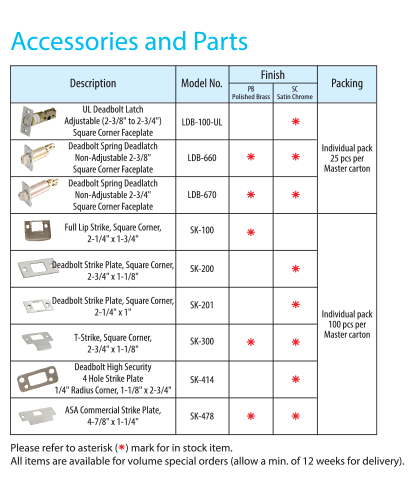

| Deadbolt Latch Strike Plate: |
Standard 1-3/4" x 2-1/4" full lip round corner. |
